Configuration

Add New Archiver Appliance Datasource

After installing plugin you can add Archiver Appliance datasource.

To add Archiver Appliance datasource, follow the below steps.

  1. Open Data Sources in the side menu.

  2. Click Add new data source.

  3. Select ArchiverAppliacne in the list.

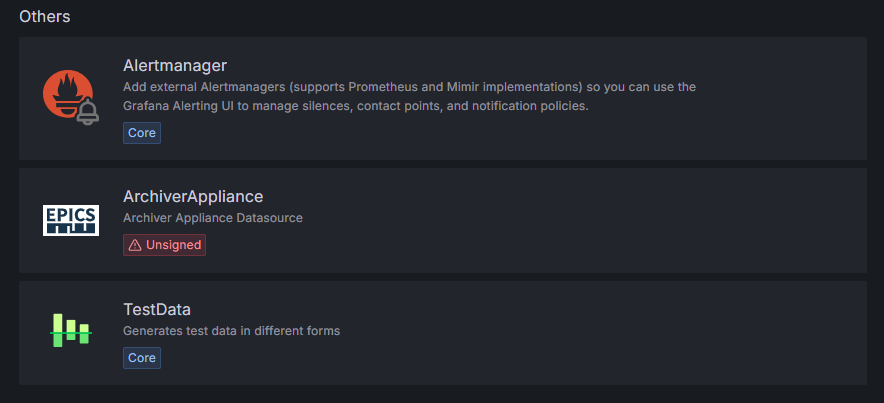

Add new datasrouce

Please refer How to add a data source for more information.

Datasource Settings

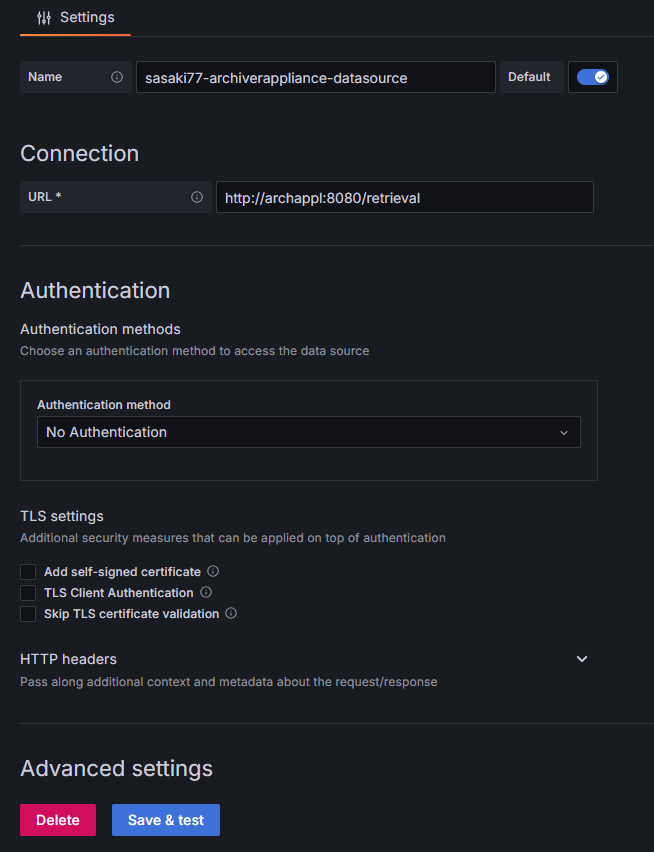

Datasrouce settings

Connection

  • URL: sets retrieval url end with retrieval.

Authentication

Basically, no need to configure.

Advanced settings

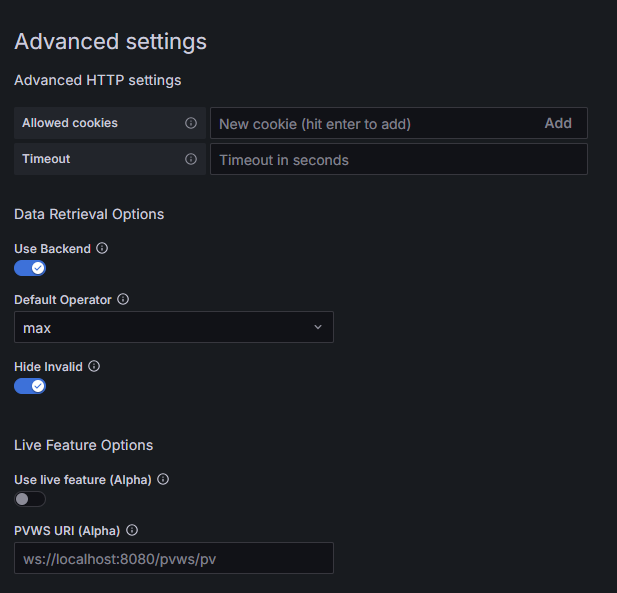

Advanced settings

Advanced HTTP settings

  • Allowed Cookies: no need to configure.

  • Timeout: sets HTTP request timeout in seconds if you need.

Data Retrieval Options

  • Use Backend: enables GO backend to retrieve the archive data for visualization. The archived data is retrieved and processed on Grafana server, then the data is sent to Grafana client.

  • Default Operator: controls the default operator for processing of data during data retrieval.

  • Hide Invalid: hides the sample data whose severity is invalid with a null value. This feature is only effective if you are using the backend data retrieval.

Live Feature Options

  • Use live feature: enables live updating with PVWS WebSocket server.

  • PVWS URI: sets the URI for the PVWS WebSocket server.
